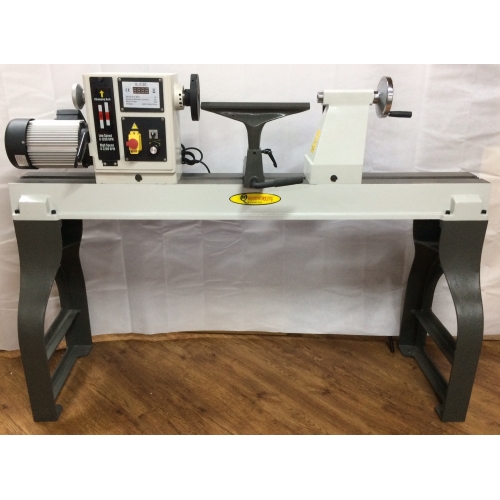

QWS 22 inch Variable Speed WoodLathe

QWS 22 inch Variable Speed WoodLathe
Click to enlarge
Price: $2,950.00
Availability: In Stock
Model: WL2242VF
Manufacturer: QWS
Average Rating: 5 out of 5 Stars!

22" Variable Speed Lathe

With electronic variable speed and a sliding head, you can turn bowls up to 22" over the bed, even larger projects off the end and 42" spindles standard.  The MC2242VF Wood Lathes strike a perfect balance of versatility, cutting edge technology and performance. Features:

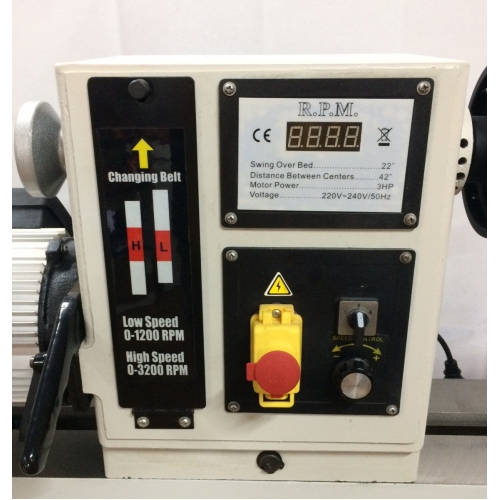

  • Digital readout allows operator to dial in the desired speed for best results.
  • Heavy-duty cast-iron lathe bed adds stability while limiting vibration during operation.
  • Electronic inverter lets you operate the machine at any speed from 0 to 3,200 RPM.
  • Indexing mechanism which allows for fast, efficient, fluting and veining operations.
  • Sliding headstock may be positioned anywhere along the bed ways for maximum flexibility and user comfort.
  • High/low speed change lever quickly changes belt positions.
  • Cam-lock mechanisms allow adjustments of headstock, tailstock and tool rest base without having to use tools.

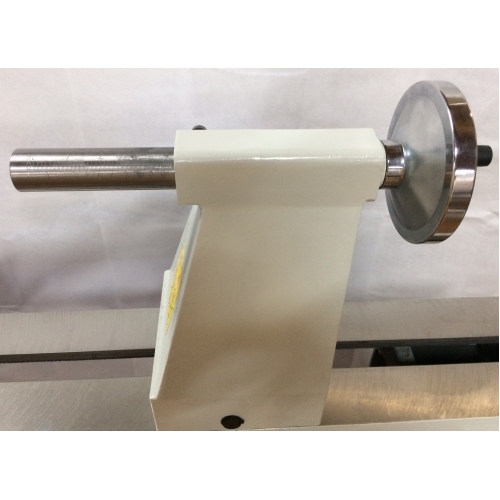

  • Hollow tailstock allows you to perform long hole boring for lamps and other vessells
Specifications MC2242VF
Over Bed​ 558 mm (22")
Distance between centers 1065mm (42")
Speeds (RPM) 0-1200 & 0-3200
Spindle Thread M30 x 3.5
Drive Spindle through hole 10mm (3/8")
Tailstock spindle travel 110mm (4")
Tool Rest 355mm (14")
Face Plate 152mm (6")
Headstock Taper MT-2
Tailstock Taper MT-2
Spindle Center to Floor (Approx) 1150mm (44-1/2")
Motor Input 2.2KW
Invertor VFD-M-2.2KW Input power 230V Only
Net We (approx)ight 225Kgs
Shipping Weight (approx) 300Kgs
