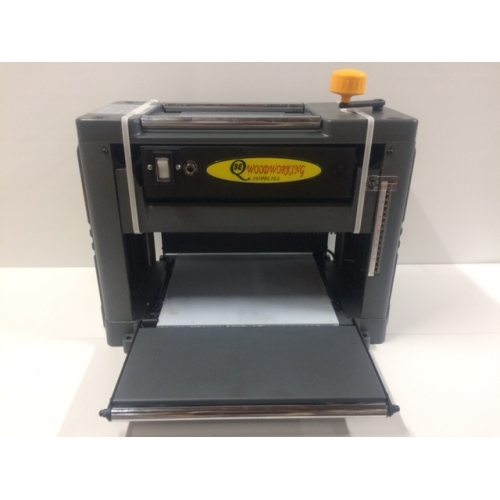

12-1/2" Thicknesser
An excellent machine for the DIY Enthusiast or weekend woodworker;
A small and compact Unit which takes up little space in the shed. Easily transportable for onsite work.
Designed for Light Duty Applications. Features: Magnetic switch with dust cover; Overload protection with reset circuit breaker.

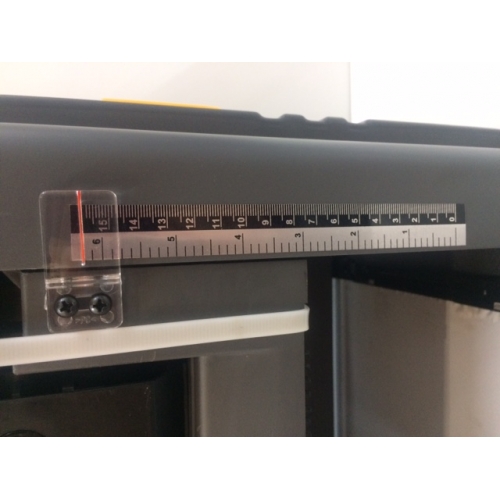

Adjustable depth gauge enables precise thickness control;

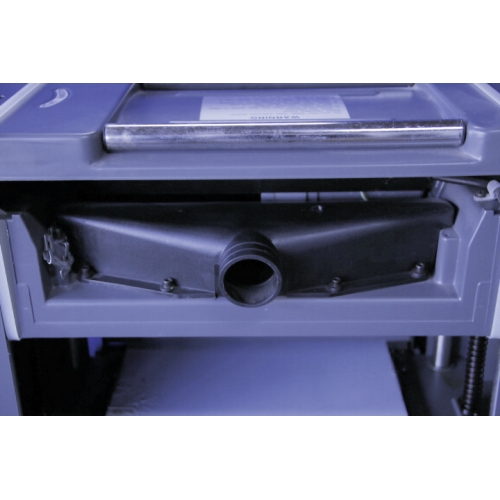

50mm dust port allows connection to shop vaccum or dust collector; Fitted with anti-kickback fingers.
Top stock rollers to assist with returning timber for re feeding

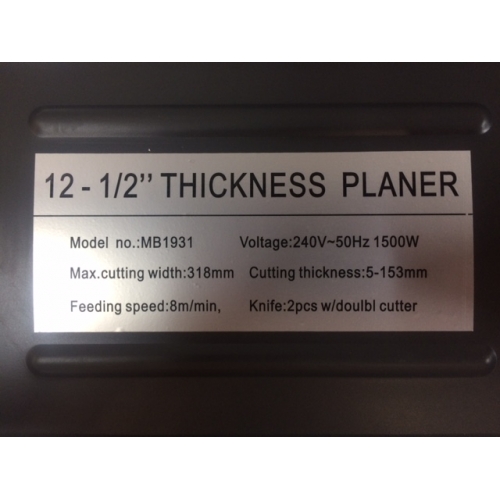

Thicknesser specifications
| ​Motor |
240V 50Hz 7A single phase |
Cutting capacity
|
|
| Stock Length (min) |
5" (127mm) |
| Stock Width (max) |
12-1/2" (318mm) |
| Stock Thickness |
0.2" ~ 6" (5 ~153 mm) |
| Feed rate |
26.2 FPM (8M/min) |
Cutter head
|
|
| Number knives |
2, single edged |
| Diameter |
1.89" (48mm) |
| Idle running speed |
8000 RPM |
| Cuts per minute |
1600 |
Overall dimensions
|
|
| Length |
22.8" (580mm) |
| Width |
22" (558mm) |
| Height |
18.2" (463mm) |
| Net weight |
67.6lbs (31.8Kg) |
| Gross weight |
70lbs (31.8Kg) |
| Packing size (L x W x H) |
24" x 18.3" X 13.8") |
